| CAT | |
| CS 533E | |
| 17 400km | |
| 2009 | |
| R 360 000 |

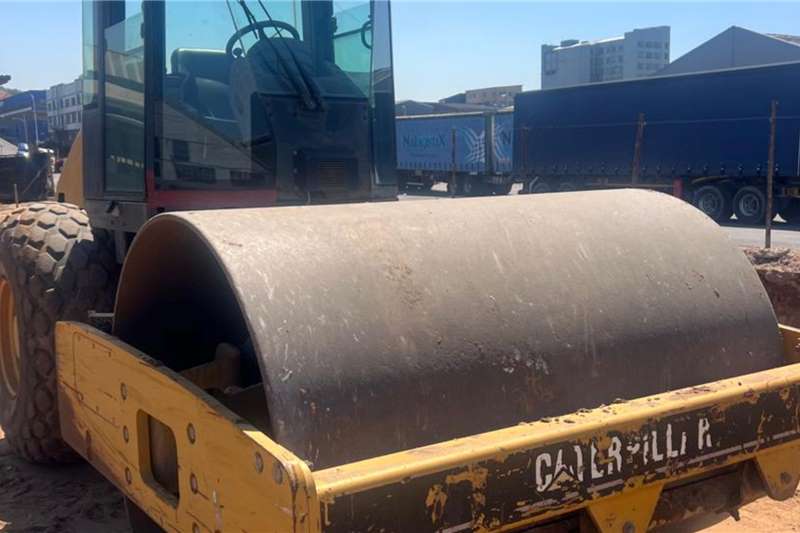

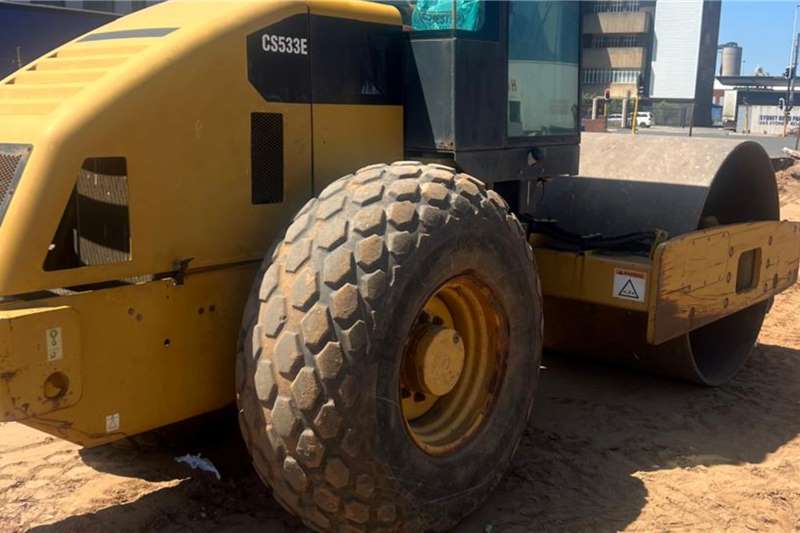

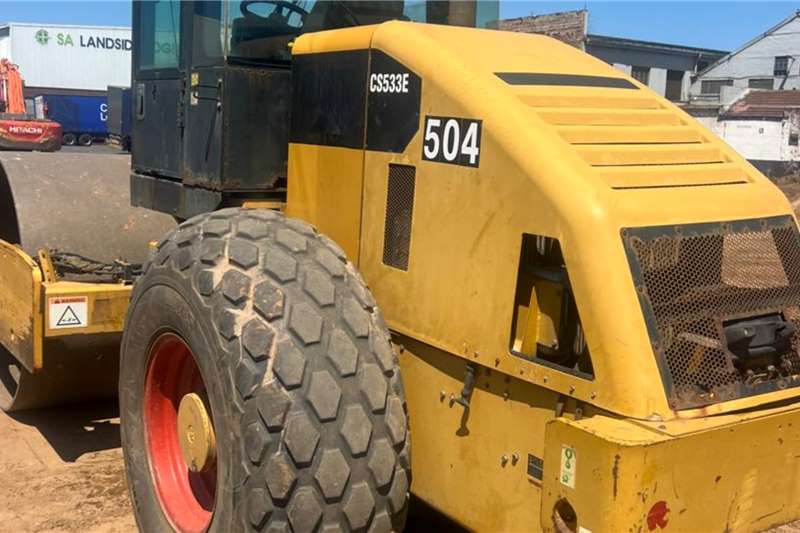

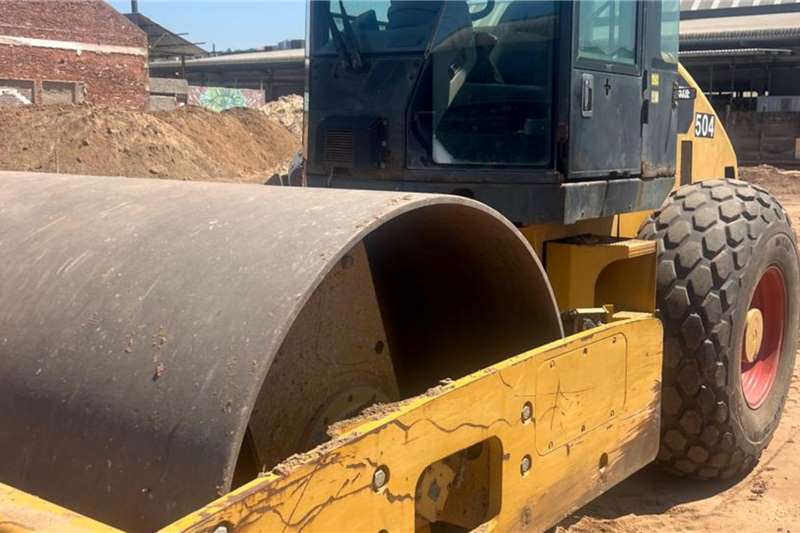

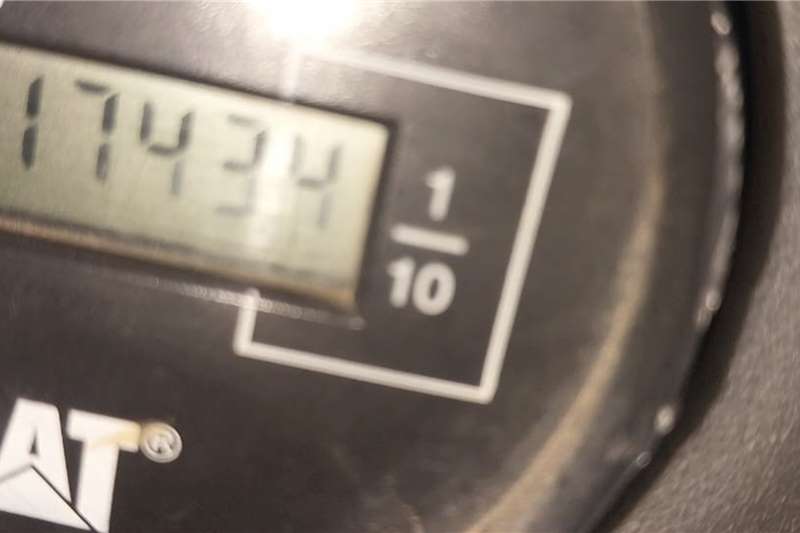

CAT CS 533E Roller 2009 model 17400hours General & Engine Engine model: Cat 3054C turbocharged diesel. Gross power: ~97 kW (130 hp). Operating weight (with cab): ~10,840 kg. Compaction (drum) width: approx 2,134 mm (84 in). Dimensions & Mobility Overall length: ~5.51 m. Overall width: ~2.29 m. Height: ~3.07 m (varies with ROPS/FOPS). Maximum travel speed: ~12 km/h. Turning radius (inside, drum edge): ~3.68 m. Vibratory / Drum Specifications Drum diameter: ~1,534 mm. Vibratory frequency: 31/34 Hz (1,860/2,040 vpm). Nominal amplitude: High ~1.8 mm; Low ~0.85 mm. Centrifugal force: Maximum ~234 kN; Minimum ~133 kN. Service & Features Fuel tank capacity: ~200 L. Ground clearance: ~543 mm. Vibratory bearing lubrication interval: 3 years or ~3,000 hours.
